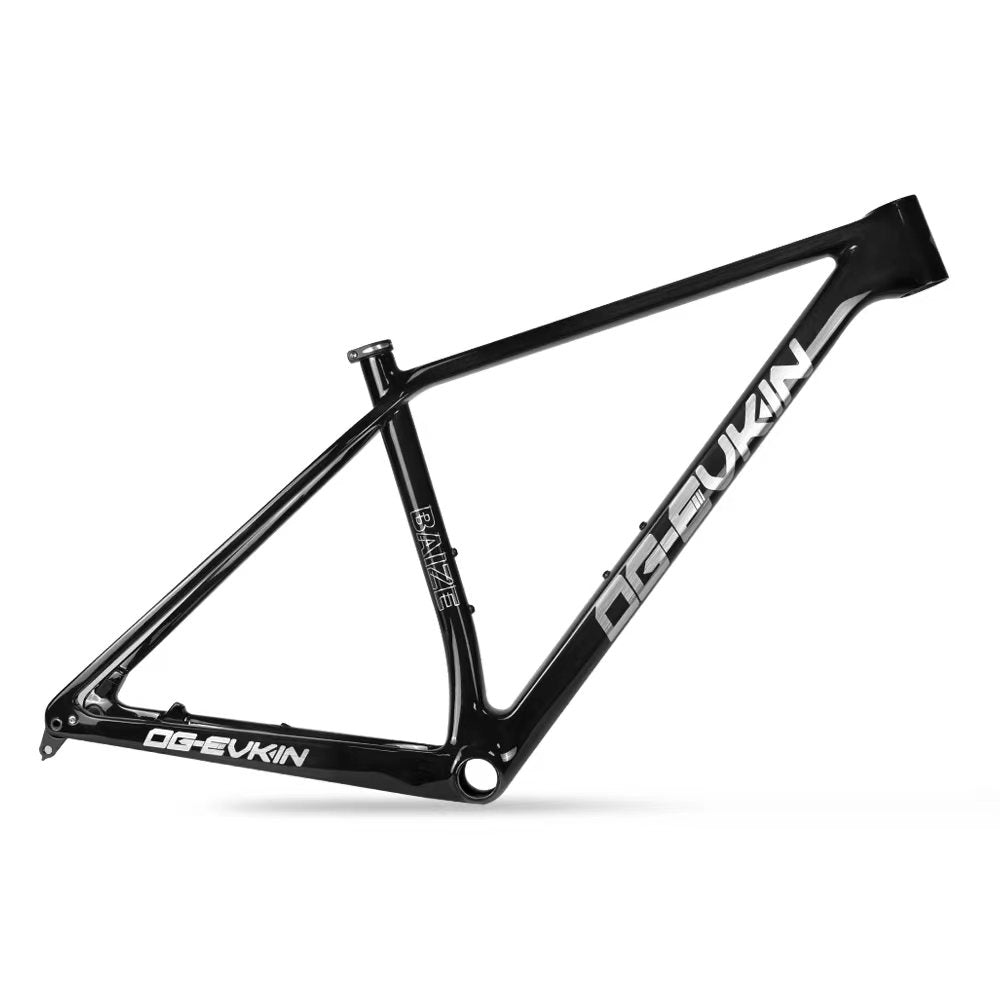

OG-EVKIN BAIZE MTB Carbon Mountain Bike Frame
$685.00
- Cable Routing: Full internal : Full internal
- System : Disc-Brake
- Framesets Include : Frame , Fork , Seat Post , Clamp , Hanger
- Color : Green, Light Brown, White, Vermilion
- Bottom Bracket : T47/86.5
- Warranty : 2 years
- Frame Sizes : S/M/L/XL
12X148 Thru-Axle 29er BB92 Disc Full Interal Routing Bicycle Carbon Bikes Frames
Technical Specifications：
Brand:OG-EVKIN
Model:BAIZE
Material: Toray T800 Carbon Fibre
Weight: 980G±50G
Use: Mountain Bikes （MTB）
Type: 29er Mountain Frame
Finish: Matte/Bright logo
Weave: UD
Type: 148*12mm Thru Axle Boost
Disc Brake: 160MM
Bottom Bracket: BB92
Seatpost: 31.6MM
Seat tube clamp：34.9MM
Size: 15"(S)/17"(M)/19"(L)
Braking System: Disc Brake
Max Tire: 2.4IN
Headset:Top 1-1/2(52mm) Down 1-1/2(52mm)
Maximum Load：120KG
Warranty: 2 years
Frameset: Frame, Clamp, Headset, Hanger , Axle
Suitable Derailleur: Di2 And Mechanical Both
34.9mm ：Seat Clamp or Direct Mount
Max Single Crankset Size：38T
